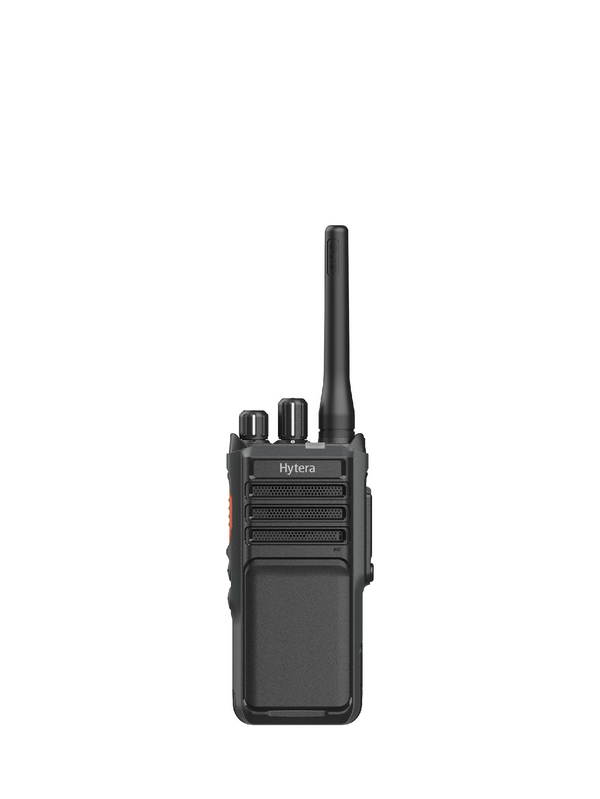

HP565

Handheld | DMR

Highlights

diagram indicating highlights of HP565

Two knobs on top

Separate knobs for channel selection and on/off/volume

Accessory Connector

Anti-counterfeit 13-pin flat connector

Universal Type-C Port

Recharge the battery using a standard USB cable and power adapter, power bank or car charger. The radio is also programmed and upgraded via this port.

Powerful Speaker

for a high volume that still makes communication possible even with strong ambient noise levels

HID LCD Colour Screen

1.45 inch colour display with 240x320 pixels

Keyboard

Durable plastic rubber keys with excellent abrasion and heat resistance

High Sensitivity

With the 0.18µV (-122dBm) sensitivity, the HP5 Series ensures stable push-to-talk voice calls even at the far edge of coverage.

High Reliability

HP5 series is IP67-graded water-proof and dust-proof and meets stringent MIL-STD-810G military requirements for protection against vibration, 1.5-meter drops, extreme temperature, etc

GPS Antenna

Due to the built-in GPS antenna, only a simple baseband antenna is required.

Functions

Created with Sketch. Break through the distance

With 0.18 µV (-122 dBm) sensitivity, the HP5 series provides exceptional communication coverage. It ensures reliable communications even with weak signals at the edge of coverage.

ic_insert_link Created with Sketch. Break Through the Distance

When you go further out, you may encounter degraded communications due to a weak radio signal. With the 0.18μV (‒122dBm) sensitivity, the HP509 provides exceptional communication coverage. It ensures reliable communications even at the far edge of coverage with a weak signal. Wherever you go in the workplace, you can always keep connected.

Created with Sketch. Universal Type-C port

Just share the same USB data cable with your smartphone, then you can charge your radio with a power bank or car charger, or program and upgrade your radio.

Created with Sketch. BT, wirelessly, conveniently

Optional BT 5.2 capability,using BT audio accessories. Allows to pair the radio with smartphone, using the Hytool Radio Manager App for radio programming.

Created with Sketch. Track your people and device anywhere

Provides updates to a dispatcher, thanks to the optional GPS, BDS and GLONASS positioning systems. The radio position is automatically sent with the emergency call.

Created with Sketch. Easier to use

Dedicated dual knobs for volume and channel controls. Install or remove the belt clip more easily without screws. The enlarged LED indicator allows you to know the radio status at a glance, no matter whether the radio is in your hand or on your shoulder or waist.

Created with Sketch. Rugged reliability

The radio housing is made of polycarbonate with excellent abrasion and heat resistance. IP67-rated and meets stringent MIL-STD-810G for protecting against dust, water, vibrations, 1.5 meter drops, extreme temperatures, and more.

Accessories for HP565

Included as standard with HP565 Included as standard with HP565

Battery

Antenna

Charger & Power

Mounting

Carrying

Audio

Cables

Related products that work with the HP565

Technical Specifications

General

Frequency range
UHF: 400-470 MHz
VHF: 136-174 MHz
Channels & zones
Channel capacity: 512
Zone capacity: 32
Channels per zone: 32
Channel spacing
Analogue: 12.5kHz/20kHz/25kHz
Digital: 12.5kHz
Operating voltage
7.4 V
Battery
1500 mAh Li-ion
Battery life (5-5-90 duty cycle)
GNSS disabled: 15 hours
GNSS enabled: 13 hours
Frequency stability
±0.5 ppm
Antenna impedance
50 Ω
Dimensions
119 mm x 55 mm x 30.5 mm
Weight
270 g
Display
1.45 inch colour LCD
Bluetooth
BT V5.2 BLE+EDR

Receiver

Sensitivity
Analogue: 0.18µV (12dB SINAD)
Analogue: 0.16µV (12dB SINAD) (typical)
Digital: 0.18µV / BER 5%
Selectivity
TIA-603: 60dB @12.5kHz / 70dB @20/25kHz
ETSI: 60 dB @12.5kHz / 70dB @20/25kHz
Intermodulation
TIA-603: 70 dB
ETSI: 65 dB
Spurious response rejection
TIA-603: 70 dB
ETSI: 70 dB
Blocking
TIA-603: 80 dB
ETSI: 84 dB
Hum and noise
40 dB @12.5kHz
43 dB @20kHz
45 dB @25kHz
Rated audio power output
0.5 W
Rated audio distortion
<3%
Audio response
+1 to -3 dB
Conducted spurious emission
< -57 dBm

Transmitter

RF power output
UHF: 1W / 4W
VHF: 1W / 5W
FM modulation
11K0F3E @12.5kHz
14K0F3E @20kHz
16K0F3E @25kHz
4FSK digital modulation
12.5kHz data only: 7K60FXD
12.5kHz data and voice: 7K60FXW
Conducted/radiated emission
-36dBm @<1GHz; -30dBm @>1GHz
Modulation limiting
±2.5kHz @12.5kHz; ±4.0kHz @20kHz; ±5.0kHz @25kHz
FM hum and noise
40dB @12.5kHz; 43dB @20kHz; 45dB @25kHz
Adjacent channel power
60dB @12.5kHz; 70dB @20/25kHz
Audio distortion
<3%
Digital vocoder type
AMBE+2™
Digital protocol
ETSI-TS102 361-1,-2,-3

Environmental

Operating temperature
-30°C to +60°C (radio only / battery: -20 ℃)
Storage temperature
-40°C to +85°C
ESD
IEC 61000-4-2 (level 4)
±8 kV (contact)
±15 kV (air)
Ingress protection
IEC60529 - IP67
Drop, shock and vibration
per MIL-STD-810 H standard
Humidity
per MIL-STD-810 H standard

Location Service

GNSS
GPS, GPS+GLONASS, GPS+BDS
TTFF (time to first fix) cold start
< 1 minute
TTFF (time to first fix) hot start
< 10 seconds
Horizontal accuracy
< 5 meters
