AN0438M02

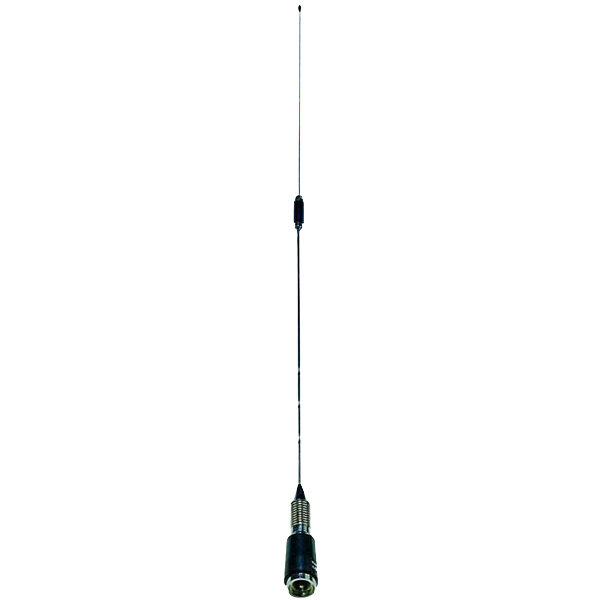

UHF Antenna (Model: TQC-400DII) (430-446MHz) -- for MD615, MD625, MD655, MD785, MD785G, MD785i, HM655, HM685, HM785, MT680 Plus
Gain 5 dBi, 1.1m antenna length, 3m cable with BNC connector, M110 magnetic mount.
UHF antenna designed for reliable and secure communication. To be used with Hytera mobile radios.
When using a M110 mounting tray on vehicles, a speed limit of 80 km/h is recommended.
Highlights
Functions
Technical Specifications
Specifications
- Frequency range
- 430-446 MHz
- Bandwidth
- 16 MHz
- Cable length
- 3 m
- Connector type
- BNC
- Gain
- 5 dBi
- Antenna type
- TQC-400DII
- Mount type
- M110 magnetic mount
- Max. recommended speed when using the M110 on vehicles
- 80 km/h
- Dimensions
- 1.1 m
- Material
- Stainless steel
- Suitable for
- MD615, MD625, MD655, MD785, MD785G, MD785i, HM655, HM685, HM785, MT680 Plus
