E-pole 100

Highlights

Functions

Icon 24px Created with Sketch. Flexible Installation

Supports Pole-mounted or wall-mounted.

Created with Sketch. Fast Connection to E-pack100

Build up ad-hoc network with E-pack100 when powered on.

Created with Sketch. 31-node Network

Supports up to 31-node repeaters and uses the wireless interconnection technology to avoid the cabling problem.

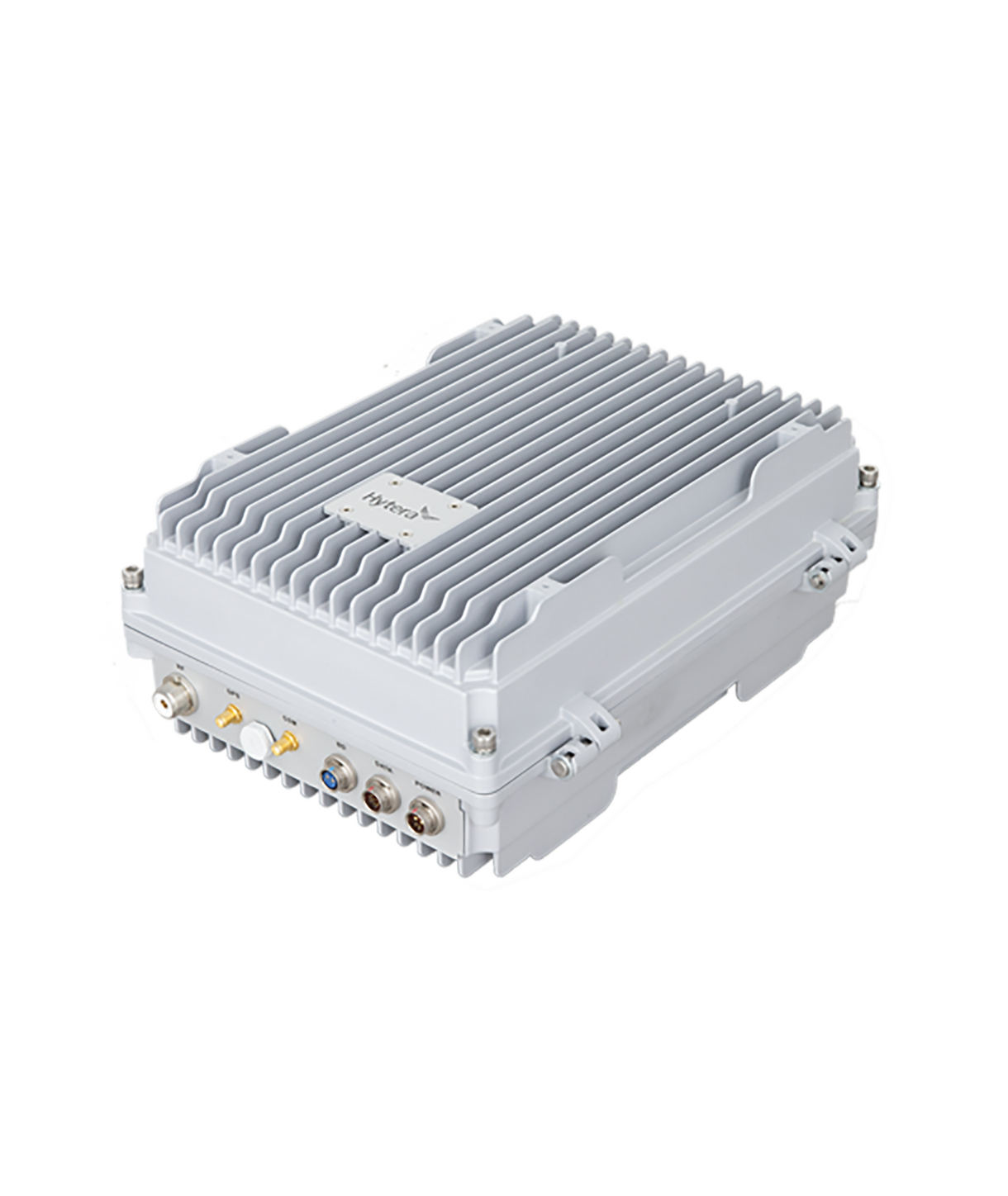

E pole 2 1

Accessories for E-pole 100

Included as standard with E-pole 100 Included as standard with E-pole 100

Systems that work with E-pole 100

DMR Systems

TETRA Systems

Technical Specifications

General

Private network mode
DMR Tier II
Node Capacity
31
Backup Battery
2Ah/10.8V
Backup Battery Life
3~5 minutes
Frequency Range
136-174MHz
Channel Spacing
25 kHz (2 x 12.5 kHz)
Current Drain (Standby)
< 1A
Current Drain (Transmit)
5W <3.5A
10W <4.5A
20W <5.5A
Frequency Stability
±0.5ppm
Antenna Impedance
50Ω
Dimensions (H×W×D) mm
316×223×133
Weight
7.3Kg

Receiver

Adjacent Channel Selectivity
ETSI:60dB @ 12.5KHz / 70dB @ 25KHz

Transmitter

Power Output
5W/10W/20W, adjustable
Channel Power
60dB @ 12.5KHz
70dB @ 25KHz

Environmental

Vibration, Drop & Shock
MIL-STD-810 C/D/E/F/G
IP Rating
IP56
