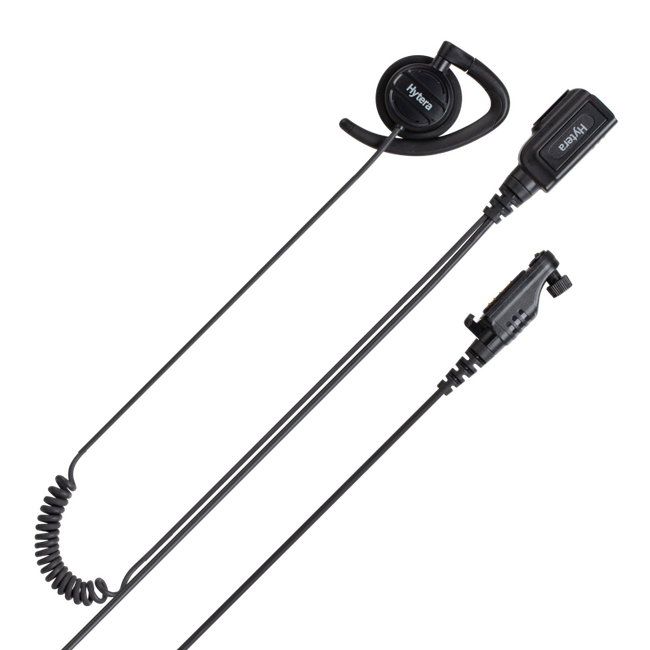

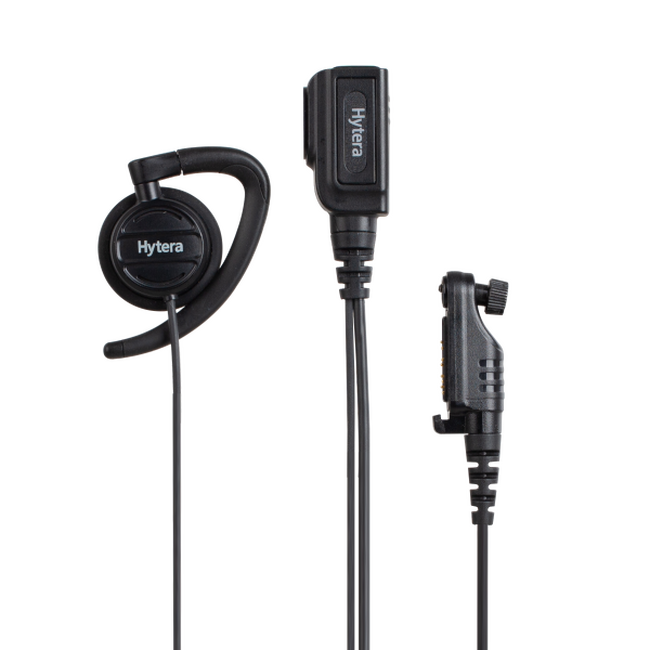

EHN38P-Ex
Intrinsically Safe C-earset with in-line Mic and PTT -- for HP715Ex, HP795Ex, PT890Ex
Comfortable-wearing earpiece designed for intrinsically safe radios. It is an economical and practical product for ex-protection situations in which large gloves and helmets are not needed.
The product features Microchip Protection for OEM Hytera verification.
Highlights
Functions
Technical Specifications
Specifications
- Weight
- about 52 g
- Color
- black
- PTT Key
- available
- VOX
- available (feature of the radio)
- Emergency Key
- none
- Radio connector
- 13-pin connector
- Microphone Sensitivity
- -45 ±3 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa
- Speaker Power
- 50 mW (rated)
- 100 mW (max.)
- Speaker Impedance
- 150 Ω ±15% @ 1 kHz
- Speaker Frequency Response
- 108 ±3 dB @ 1 kHz at 0.387 V
- IP Rating
- IP5x
- Intrinsically safe approvals
- Ex ib I Mb
- Ex ib IIC T4 Gb
- Ex ib IIC T90℃ Db
- Operating Temperature
- -25°C to 60°C
- Storage Temperature
- -40°C to 85°C
- Compatible radios:
- HP715Ex IIA, HP715Ex IIC, HP795Ex IIA, HP795Ex IIC, PT890Ex
