EHM04-A

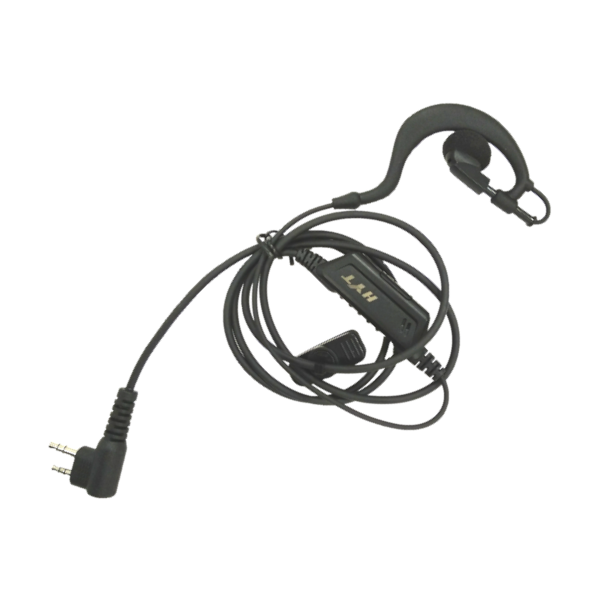

EHM04-A - Earset with in-Line MIC & PTT -- for POWER446, TC-446S, TC-508, TC-510, TC-518, TC-580, TC-610, TC-620, TC-700
Earset with in-line MIC for POWER446, TC-446S, TC-508, TC-510, TC-518, TC-580, TC-610, TC-620, TC-700 -- replacement for EHM04
Highlights
Functions
Technical Specifications
Specifications
- Weight
- about 28 g
- Color
- black
- PTT key
- available
- VOX
- none
- Emergency key
- none
- Radio connector
- 6-pin double jack connector
- Microphone sensitivity
- -42 ±3dB @1kHz 3.0V 2.2KΩ; 0dB=1V/Pa
- Speaker power
- 20 mW (rated)
- 30 mW (max.)
- Speaker impedance
- 32 Ω ±15% @1kHz
- Speaker frequency response
- 102 ±4dB @1kHz at 10mW
- Ingress protection
- none
- Operating temperature
- -20 to 60 °C
- Storage temperature
- -40 to 85 °C
- Suitable analogue radios
- POWER446, TC-446S, TC-508, TC-510, TC-518, TC-580, TC-610, TC-620, TC-700
- Not applicable for analogue 'P' radio versions (TC-610P, TC-700P)
