    Bi-Directional Amplifier Solutions

Overcoming Communication Challenges

What are Bi-Directional Amplifiers?

A BDA (Bi–Directional Amplifier) is an RF signal booster used to improve radio communications in situations where radio signal levels are degraded due to obstacles in the radio path.

This might be in tunnels, high rise buildings, suburban rail networks and underground car parks where their construction can prevent the signals from a source reaching the users in these areas.

They are available in a number of variants to suit the communications situation, this includes integrated and distributed configurations and band and channel select options.

Bda Brochure Graphic Thumbnail

BDA Product Brochure

Click the link to download Hytera's BDA Product Brochure for more information

Click here to download

Hytera BDAs

BDAs are a cost effective and flexible way to:

  • Extend coverage of radio and communication systems
  • Overcome challenges presented by environments like high–rise buildings, basements, tunnels, subways and more.

BDAs are Ideal for Shopping Centres

  • Complicated structural design: Few partition walls, multiple levels
  • Indoor coverage includes: Shopping areas, management offices, security offices, meeting rooms, rest rooms, underground parking, etc.
Generic shopping centre 9e59e0534cf8ef1f33324ce24984d979

Excels at Sports Stadiums

  • Semi–open/reinforced concrete structure: Few partition walls
  • Indoor coverage includes: Entrance gates, spectator and player areas, office, security counter, VIP rooms, equipment rooms, etc.

Bi-directional amplifiers are Reliable at Transport Hubs

  • Semi–open/reinforced concrete structure: Few partition walls; high ceiling, etc.
  • Indoor coverage includes: Offices, waiting rooms, security counter, VIP rooms, stores, equipment rooms, underground parking, etc.
Picture1 9e59e0534cf8ef1f33324ce24984d979

BDA Highlights

  • Rugged construction: Metal housing provides good ingress protection and heat dissipation
  • Portable: BDAs are small, lightweight, with flexible mounting options
  • Comprehensive range of variants: Integrated/distributed, band/channel select, direct/wireless coupling, VHF/UHF frequencies
  • Flexible network topologies: Tree/star/chain/ring/hybrid – To allow best fit for application
Operator Enterprise Edenred France 20170726 Page 1 Image 0001

DS–9300 Highlights

  • Easy to deploy: The DS–9300 BDA is small, light–weight, with flexible mounting options
  • UHF: DS–9300 supports 400–470MHz
  • Excellent out-of-band rejection: The DS–9300 starts signal rejection from 50KHz, which provides excellent rejection of out-of-band signals, which enhances coverage and voice quality
  • Excellent intermodulation attenuation: for the DS–9300, 8 carriers deliver –45dBc which is effective in eliminating the interference of intermodulation signals. This helps to provide better coverage and voice quality
Img 7635

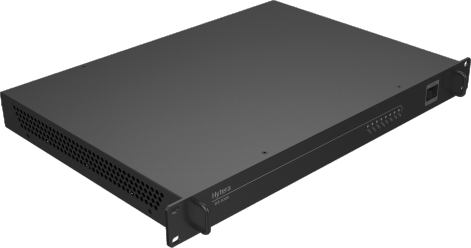

TS-9200 Highlights

  • Integrated and distributed: The TS–9200 BDA offers both options
  • VHF: TS–9200 supports VHF (136–174MHz) and UHF (Integrated model only) (350–520MHz)
  • Channel and band select variants: TS–9200 supports both options
  • Analogue and Digital TS-9200 BDAs available
TS 9200 BDA image

Enquiry Form

Please submit your details to learn more about Hytera's BDAs
